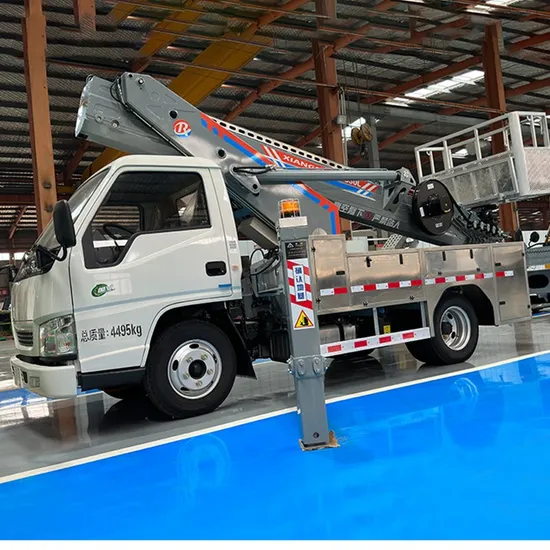

Jmc 9m Aerial Work Platform/Hydraulic Lifting Platform

Basic Info

Model NO.	XHZ5040JGKJ6
Running Mode	Moving
Feature	Stainless Steel
Certification	ISO 9001
Transport Package	Full-Truck Load
Trademark	Handler
Origin	China
HS Code	8428909090

Product Description

Specification
Name:XHZ5040JGKJ6 Truck-mounted Aerial Work Platform

Component	Description
Chassis	JMC JX1041TSA6 Second Chassis
Engine	JMC JX4D30B6H Diesel engine, max power is 85kW,emission standard is State VI
Cab	Double-row seat, take by 5 persons, cab with air-condition and radio
Guardrail and Covering Board	Original cargo tank, anti-skid riffled plate
PTO	Flexible shaft manual operation
Basket	All-metal single-person construction:1000x650x1100mm Fiberglass single-person construction:900x580x1100mm(option)
Boom	2-section articulated boom
Slewing Mechanism	360° continuous rotation
Outriggers	"frog"-shape, rear side, can be adjust individually
Operation System	Control box at both turret and basket
Hydraulic System	Electro-hydraulic multitoned valve control, stepless speed changing can be realized
Leveling System	Inset machinery rod automatic leveling
Other Equipments

Traveling Status Data

Length	mm	4930
Width	mm	1700
Height	mm	2700
Cab (include the driver)	person	5
Weight	kg	3505
Front suspension	mm	1075
Rear suspension	mm	1235
Wheel base	mm	2490
Max. Speed	km/h	100
Min Ground Clearance	mm	190
Approach Angle	°	18
Departure Angle	°	15

Main technical parameter of platform

Basket Rated Load		kg	150/120(fiberglass)
Max. Work Height		m	9.6
Max. Range @ Max. Work Height		m	2.3
Max. Range		m	4.6
Max. Height @ Max. Work Range		m	6.4
Span of Outrigger	Longitudinal(left/right)	mm	1600
	Crosswise(front/rear)	mm	3150
Boom Rotation Speed		s/r	≥30
Boom Range Time		s	≥40
Outriggers Acting Time		s	≥30
